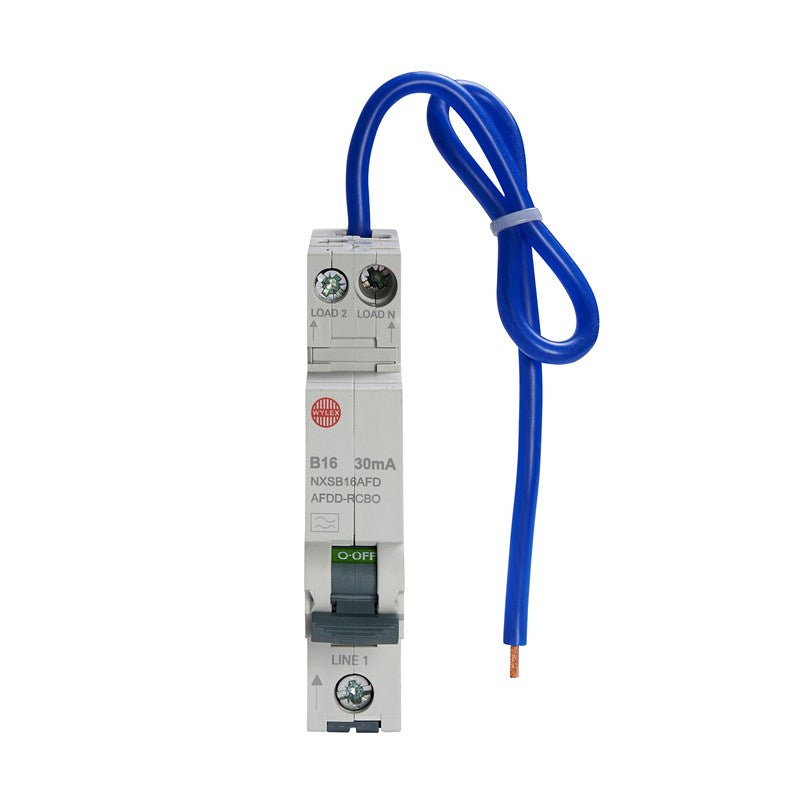

Wylex NXSB16AFD RCBO/AFDD 1MW 1P+SWN
Single module, Miniature Bi-Directional AFDD RCBO combined. 16A B curve (MCB), 30mA Type A (RCD). Single pole with switched neutral. No miss busbar connection. Fits NM & NMX consumer units and NH L range Distribution Boards.
Fits all new and existing installations and combines 3 technologies
AFDD technology automatically disconnects dangerous electrical arcs that can cause fires
MCB technology prevents overload currents and overheating
RCD technology which prevents electrical shocks
All in one single compact module
Specifications:
| Brand | Wylex |
| Current Rating | 16A |
| Depth | 77mm |
| Dimensions | (H)90 mm x (W)18 mm x (D)77 mm |
| Frequency | 50Hz |
| Guarantee | 1 Year |
| Height | 90mm |
| IP Rating | IP20 |
| Mounting | DIN Rail |
| Number or Modules | 1 |
| Number of Poles | Single Pole and Neutral |
| Outgoing Terminal Capacity | 16mm² |
| Packaging Types | Each |
| Product Range | NXS |
| RCD Type | A |
| Short Circuit Rating | 6kA |
| Standards | IEC 61009-1, BS EN 62606 |
| Tripping Characteristics | B Curve |
| Tripping Sensitivity | 30mA |
| Unspsc V18 | 39121601 |
| Voltage Rating | 230V |
| Weight | 0.165kg |
| Width | 18mm |
