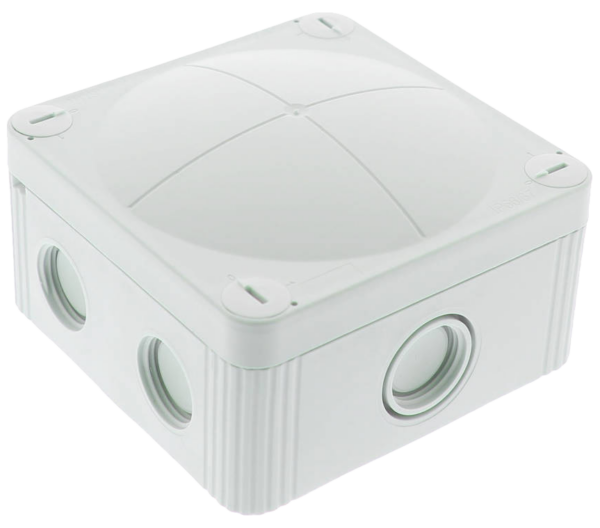

Wiska 10105596 COMBI 407/5 LG Junction Box
Remarks:
IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland
Equipment:
– 6x M20 threaded membrane entries and 1 middle M20 threaded membrane entry with knockout to M25
– 2 membrane cable entries through rear
– 4 captive cover screws
– including mounting clip
– with terminal block 5-poles, 4mm²
Fixing:
With mounting clip or 4 internal openings outside of the sealing area
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C – 60 °C |
| Protection class | IP66 / IP67 |
| Glow wire test | 750 °C |
| Voltage | 690 V |
| Rated current / A (Terminal) | 32 A |
| Rated cross section | 4 mm² |
| Terminals/poles | 5-pole, 4,0 mm² |
| Fixing | 4 internal openings |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 12 mm |
| External dimensions LxWxH | 95 x 95 x 60mm |
| Type of cable gland | M 20 x 1,5, M 25 x 1,5 |
| Using for cable gland | |
| Product Color | RAL 7035 |
| WISKA-Order no. | 10105596 |
| Type | COMBI 407/5 LG |
| Packing unit | 5 |
| ETIM-Classification | EC002600 |
