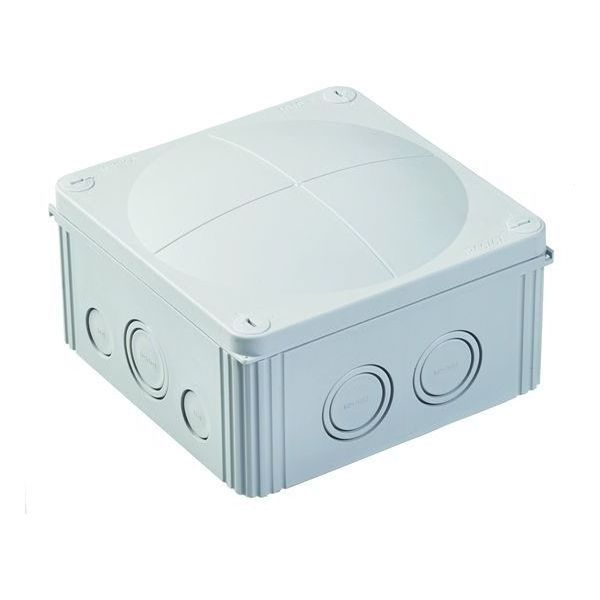

Wiska 10060703 COMBI 1010/5 LG Junction Box
Remarks:
IP66: using the QUIXX self sealing membrane screw
IP67: using the knockout entry together with ESKV cable gland
Equipment:
– 10 knockouts side 5x M25/M32; 2x M20; 3x M20/M32
– 4 knockouts in the bottom 2x M25/M32; 2x M20/M25
– 4 captive cover screws
– including QUIXX EMS self-sealing membrane screw 2x M25; 1x M32
– including terminal block 5-poles, 10mm²
Mounting:
4 internal openings outside of the sealing area
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C – 60 °C |
| Protection class | IP66 / IP67 |
| Glow wire test | 750 °C |
| Voltage | 690 V |
| Rated current / A (Terminal) | 57 A |
| Rated cross section | 10 mm² |
| Terminals/poles | 5-pole, 10,0 mm² |
| Fixing | 4 internal openings |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 21 mm |
| External dimensions LxWxH | 140 x 140 x 82mm |
| Using for cable gland | |
| Product Color | RAL 7035 |
| WISKA-Order no. | 10060703 |
| Type | COMBI 1010/5 LG |
| Packing unit | 2 |
| ETIM-Classification | EC002600 |
