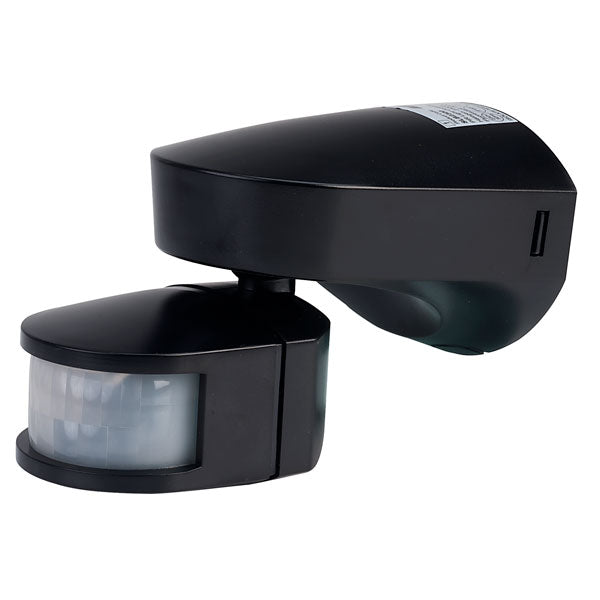

Timeguard SLB2300 2300W PIR Light Controller – Black
Powerful PIR controller for new and existing installations.
- Total PIR switching: 2300W incandescent/halogen, 500W fluorescent/low energy plus 250W LED.
- 12m detection range with 180º area of detection.
- Pan and tilt feature.
- Light ON times adjustable from 5 seconds to 15 minutes.
- LUX (light level) adjustment – Day to Night (2 to 1000).
- Manual ON/OFF switching override.
- IP55 weatherproof rating.
- Simple and quick to fit terminal block connectors.
- Dimensions: 95 x 78 x 141mm.
| Operating Voltage | 230V AC |
|---|---|
| Lamp Load (W) | Fluorescent/Low Energy 500, Filament 2300, LED 250 |
| Weatherproof Rating | IP55 |
| Detection Range (Max) Metres | 12 |
| Angle of Detection | 180º |
| Light ON Time After Last Detection (Adjustable) | 5 Seconds (Min), 15 Minutes (Max) |
| Permanent ON Facility | Electronic |
| Adjustable Light Level Control | Yes |
| EC Directives | Conforms to Latest Directives |
| Overall Dimensions (mm) | Height 95, Width 78, Depth 141 |
