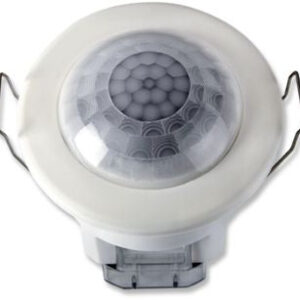

Timeguard PDFMMINILS 360° Flush Mount Linkable Mini PIR Slave Sensor
For use with the Timeguard PDFMMINIL 360° Flush Mount Linkable Mini PIR Sensor. Up to 5 slaves can be connected to one PDFMMINIL master unit.
- Small 47mm diameter body.
- Unique twist & lock body.
- Up to 5 plug & play slave units can be added.
- Ideal for corridors.
- Up 8m diameter detection range.
- Presence detection.
- Pre-installed 5m lead.
| Class Rating | Class 3 |
|---|---|
| Weatherproof Rating | IP40 |
| Operating Temperature | -20°C to +40°C |
| Motion Detection Range | 8m Diameter at a 2.5m mounting height |
| Presence Detection Range | 3m Diameter |
| Angle of Detection | 360° |
| Time ON Adjustment | 30 Seconds to 30 Minutes |
| Warm-up Time | 60 Seconds |
| PIR Sensor Connection Cable | Pre-fitted 2500mm long cable with an RJ11 connector |
| Ceiling Cut-out | 40mm Diameter hole |
| Overall Dimensions | 47mm Diameter body, 64mm height |
| EC Directives | Conforms to latest directives |
