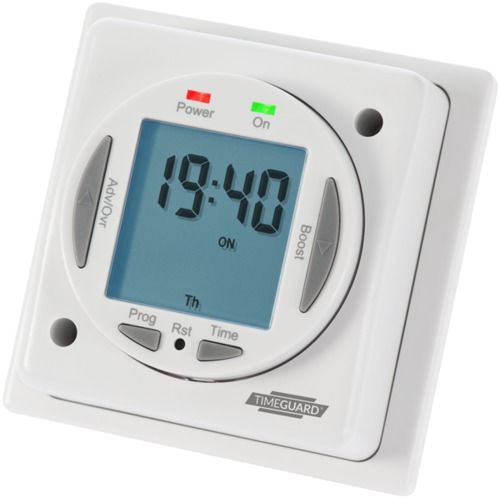

Timeguard NTT03 24 Hour/7 Day Compact Electronic Immersion Heater Timeswitch
Introducing the New range of Compact Timeswitches from Timeguard!
- 16(4)A load rating.
- 4 ON/4 OFF easy-set programme periods per day, 28 ON/28 OFF programmes per week.
- Shortest switching time 1 minute.
- Extra large ‘Easy View’ screen with blue LED backlighting.
- Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing.
- Large easy push programme buttons.
- Self-cancelling override button to next programme change.
- Optional 1 and 2 hour boost button.
- Automatic Summer/Winter changeover.
- 720 hours rechargeable memory back-up.
- Fits a standard flush or surface mount box min. 32mm deep.
| Timer Mode | 24 Hour/7 Day |
|---|---|
| Setting Type | Digital |
| Operating Voltage | 230V AC |
| Switch Rating 230V AC | 16A Resistive (3.68kW), Inductive 4A |
| Stand-alone LED Rating | 100W |
| Operating Temperature | 0°C to 40ºC |
| Battery | 720 Hours Rechargeable |
| Cable Connection | 1.5 – 2.5mm2 Flexible Cable |
| EC Directives | Conforms to Latest Directives |
| Dimensions (mm) | Height 92, Width 92, Depth 59 |
