ProWarm™ Tile Backer Board Pallet – Backer-Pro
ProWarm™ Tile Backer Board Pallet – BACKER-PRO provides the ultimate combination of waterproofing and thermal insulation for underfloor heating and tile applications. Crafted from high-quality extruded polystyrene and reinforced with fibreglass mesh on both sides, these panels are engineered to perfectly complement our under-tile heating cables and mats (not suitable for underwood systems).
Key Features:
- Exceptional Waterproofing: The BACKER-PRO boards offer a robust and waterproof base for securely affixing wall or floor tiles, ensuring long-lasting durability and protection against moisture.
- Outstanding Thermal Insulation: With a thermal conductivity value of just 0.033 W/mK, these insulation boards significantly enhance the efficiency of your underfloor heating systems, reducing heat-up times and operational costs for optimal comfort and energy savings.
- Versatile Thickness Options: Available in a variety of thicknesses—6mm, 10mm, 12.5mm, 20mm, 30mm, and 50mm—the BACKER-PRO boards cater to a wide range of installation needs and insulation specifications.
- Industry-Approved: Rigorously tested and endorsed by Instarmac -Ultra, a respected name in tile adhesives, the BACKER-PRO boards ensure compatibility and reliability for your projects.
- Effective Sound Insulation: These boards significantly diminish impact noise, contributing to a quieter, more serene environment.
- Simplified Installation: BACKER-PRO boards can be easily cut with a utility knife, removing the need for complex tools like jigsaws. They are suitable for both floor and wall applications when installed correctly.
- Stable and Reliable: These waterproof boards maintain excellent dimensional stability, ensuring consistent performance even in wet room settings.
Upgrade your underfloor heating and tiling projects with the ProWarm™ BACKER-PRO insulation boards. Their unparalleled waterproofing capabilities, insulation efficiency, and straightforward installation process make them the premier choice for establishing a dependable and effective heating system paired with a resilient tile surface.
- Available Thicknesses: 6mm, 10mm, 12.5mm, 20mm, 30mm, 50mm
- Waterproof: Yes
- Thermal Conductivity: 0.033 W/mK
- Sound Insulation: Yes
- Installation Method: Cutting with a knife, suitable adhesives for concrete or wooden subfloors

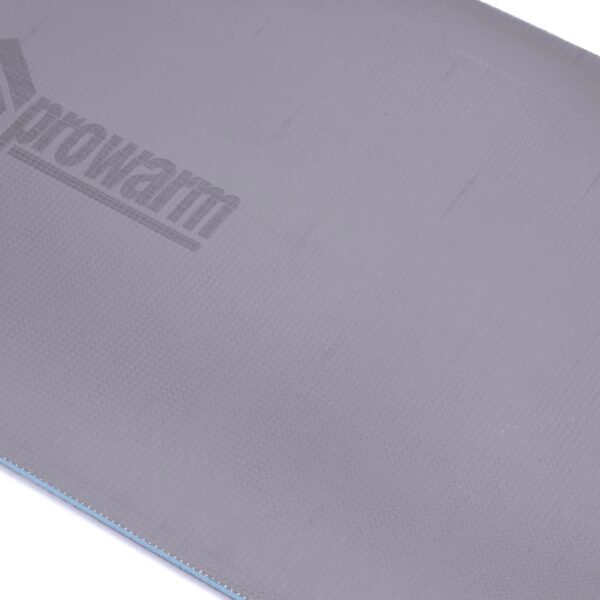

Please note: The color of the polystyrene may vary depending on the batch. The boards are not stamped with ‘ProWarm’, and the image is for advertising purposes only.
Specifications
| Material | Extruded Polystyrene Sheet – Polymer Modified Coating |
|---|---|
| Sheet Dimensions | 1200mm x 600mm |
| Thermal Conductivity | 0.033 W/mK |
| Capillarity | Nil |
| Compression Strength | 30 t/m2 |
| Water absorption | Less than 0.1 vol% |
| Tensile Strength | 350 KPa |
| Fire Protection Class | Bs 3837:B1 DIN |
Installation
Concrete Subfloors
When installing any type of tile backer board onto concrete subfloor we recommend using Ultra™ flexible tile adhesive, please make sure the floor is primed with a suitable primer before installation.
Wood subfloors
When installing onto wooden floors we recommend using Ultra™ flexible tile adhesive in addition with ProWarm™ insulation fixing pack or suitable screws and washers at every 300mm centres. This is approx 15 fixings per board
