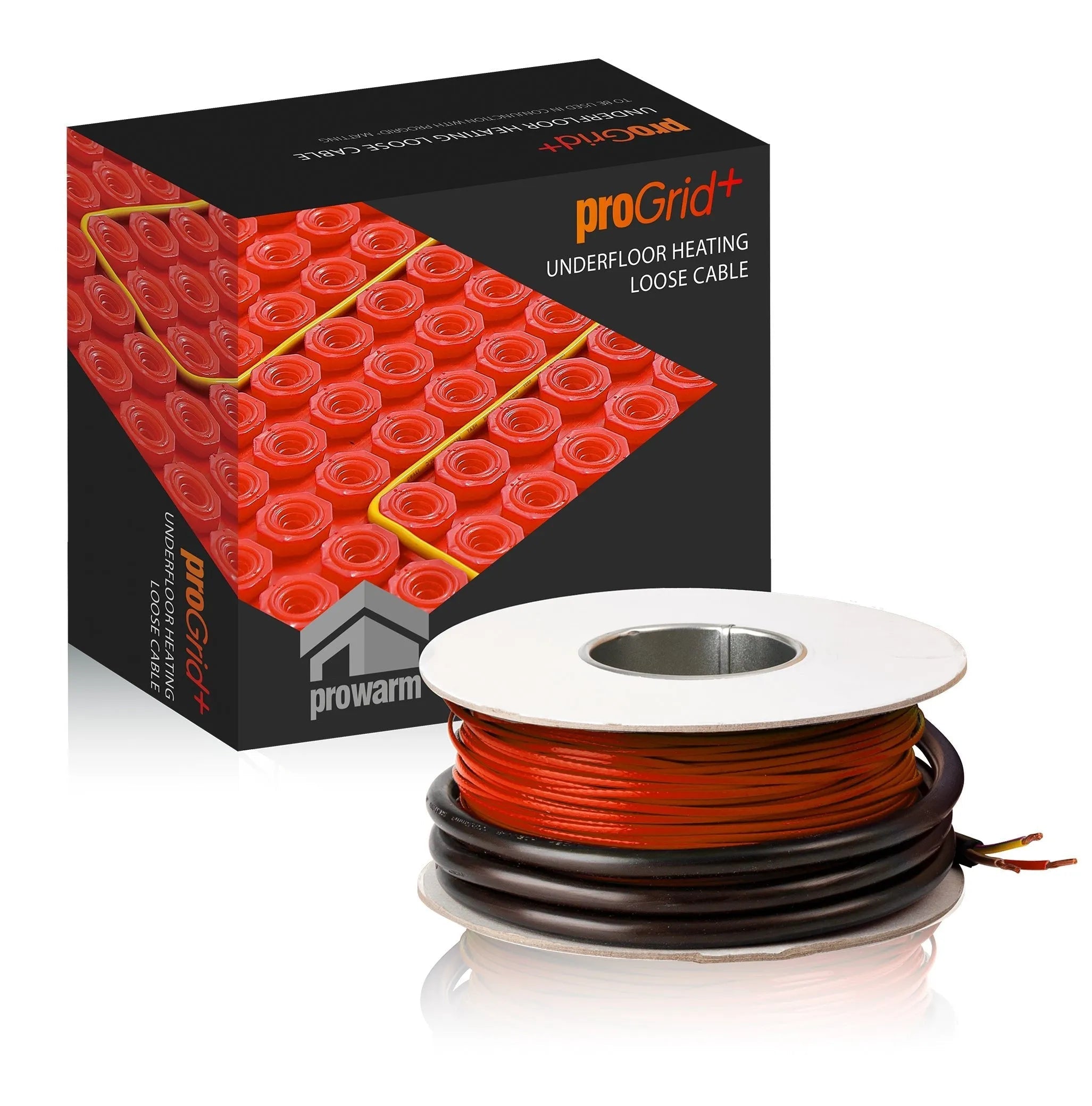

ProWarm™ ProGrid+ Electric Underfloor Heating Cable 150W
Experience unparalleled comfort with the ProWarm™ ProGrid+ Electric Underfloor Heating Cable, designed to provide gentle and consistent heat that transforms your floors into a cozy sanctuary. Bid farewell to cold tile surfaces and welcome a soothing warmth that elevates your living experience.
For optimal performance, it is crucial to pair the ProWarm™ Electric Underfloor Heating Cable with the ProWarm™ ProGrid+ Heating Mat (sold separately). This powerful combination ensures maximum heat distribution and efficiency, making your underfloor heating system exceptional. The ProGrid+ Heating Mat adds an extra layer of insulation, ensuring uniform heat dispersion across your floor for an unmatched level of comfort.
The ProWarm™ ProGrid+ Electric Underfloor Heating Cable is engineered for reliability and longevity. Crafted from high-quality materials, this cable is built to withstand the test of time, guaranteeing durability and consistent performance year after year. You can trust that your underfloor heating system will deliver warmth and comfort for a lifetime.
Elevate your home with the ProWarm™ ProGrid+ Electric Underfloor Heating Cable and create a luxurious environment where warmth and comfort reign supreme. Enjoy the freedom of walking on heated floors, feel the gentle touch of warmth beneath your feet, and indulge in the remarkable coziness of your space. Say goodbye to chilly floors and embrace the transformative power of ProWarm™ for an extraordinary underfloor heating experience.
PLEASE NOTE: Must be used with ProWarm™ ProGrid+ Heating Mat. Not included with the Progrid+ cable.
Specifications
Resistance Values Twin Conductor 13.7W / m / 230 VOLTS
| Length (M) | Watts (W) | Resistance (Ohms) |
|---|---|---|
| 10.9 | 150 | 352.67 |
| 16.4 | 225 | 235.11 |
| 21.9 | 300 | 176.33 |
| 27.4 | 375 | 141.07 |
| 32.8 | 450 | 117.56 |
| 38.3 | 525 | 100.76 |
| 43.8 | 600 | 88.17 |
| 49.3 | 675 | 78.37 |
| 54.7 | 750 | 70.53 |
| 65.7 | 900 | 58.78 |
| 76.6 | 1050 | 50.38 |
| 87.6 | 1200 | 44.08 |
| 98.5 | 1350 | 39.19 |
| 109.5 | 1500 | 35.27 |
| 131.4 | 1800 | 29.39 |
| 153.3 | 2100 | 25.19 |
| 175.2 | 2400 | 22.04 |

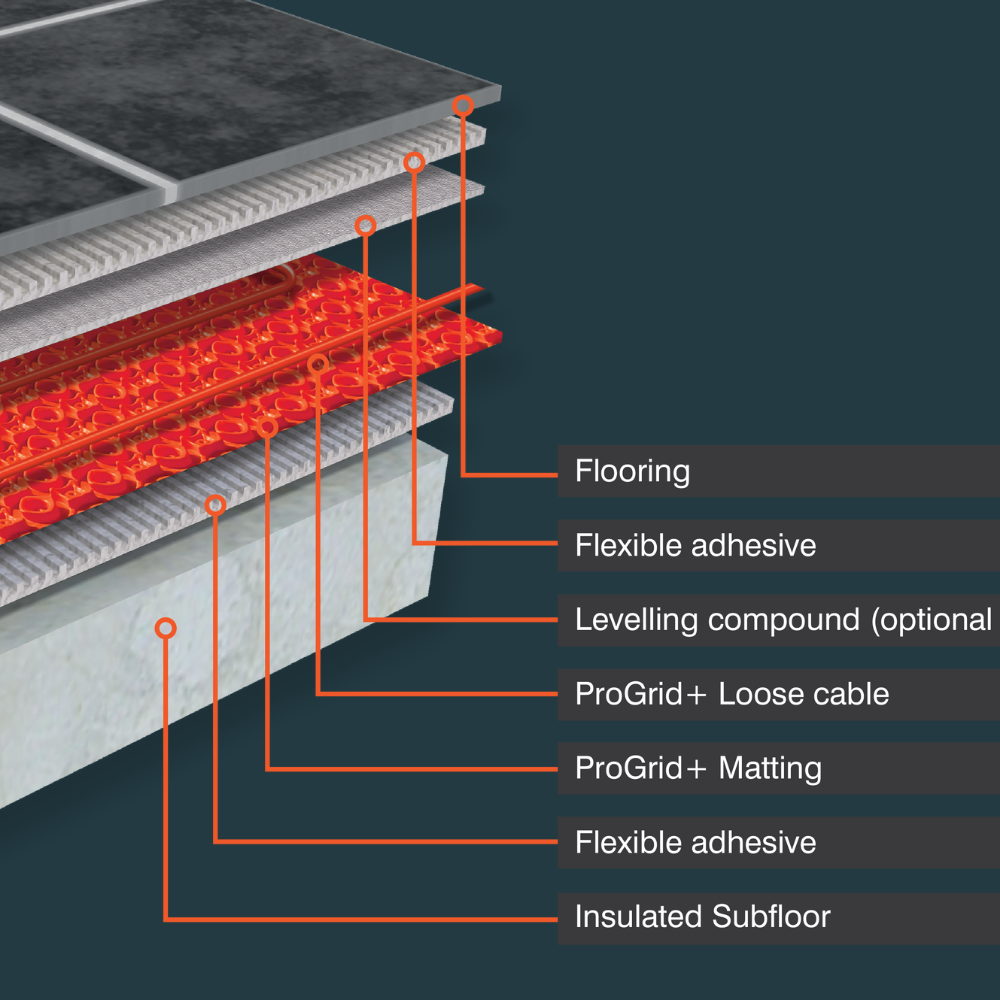

Installation
Please Note: The following is intended as a guide only. Always refer to the full installation manual for instructions.
- Ensure that the subfloor is solid and suitable for tiling, free from dust and debris. Wooden subfloors should ideally be reinforced to prevent flexing and the possibility of tiles dislodging. This can be reinforced using a suitable WBP or Marine plywood or insulated tile-backer boards such as ProWarm™ Backer Boards. Bitumen bases should be covered with a suitable backer board or a 3-5mm leveling compound.
- Prime the floor using the acrylic-based primer (see advice for anhydrite screeds). Once primed leave to dry (typically 1-2 hours). Once primed avoid any excess foot traffic over this area. The purpose of priming is to promote greater adhesion of the tile adhesive by reducing the amount of moisture absorbed into the subfloor. ALWAYS CHECK with tile adhesive/levelling compound manufacturer that the primer is suitable for use with their product/s, please contact our technical help center if you are in any doubt.
- If using ProWarm™ insulation tile Backer Boards or XPS insulation boards, do so in accordance with the manufacturer’s instructions, we do advise staggering the boards in a brick bond style and making sure the boards are fixed using suitable flexible adhesives to solid floors and/or mechanically fixed to wooden subfloors @ 300mm centres using suitable screws and washers
Cable Coverage Guide
| Product Code | Cable length (m) | 230w/m2 | 150w/m2 | 115w/m2 |
|---|---|---|---|---|
| 60mm | 90mm | 120mm | ||
| PROGRIDCABLEONLY1.0 | 10.9 | 0.7 | 1 | 1.3 |
| PROGRIDCABLEONLY1.5 | 16.4 | 1 | 1.5 | 2 |
| PROGRIDCABLEONLY2.0 | 21.9 | 1.3 | 2 | 2.6 |
| PROGRIDCABLEONLY2.5 | 27.4 | 1.6 | 2.5 | 3.3 |
| PROGRIDCABLEONLY3.0 | 32.8 | 2 | 3 | 3.9 |
| PROGRIDCABLEONLY3.5 | 38.3 | 2.3 | 3.5 | 4.6 |
| PROGRIDCABLEONLY4.0 | 43.8 | 2.6 | 4 | 5.3 |
| PROGRIDCABLEONLY4.5 | 49.3 | 3 | 4.5 | 5.9 |
| PROGRIDCABLEONLY5.0 | 54.7 | 3.3 | 5 | 6.6 |
| PROGRIDCABLEONLY6.0 | 65.7 | 3.9 | 6 | 7.9 |
| PROGRIDCABLEONLY7.0 | 76.6 | 4.6 | 7 | 9.2 |
| PROGRIDCABLEONLY8.0 | 87.6 | 5.3 | 8 | 10.5 |
| PROGRIDCABLEONLY9.0 | 98.5 | 5.9 | 9 | 11.8 |
| PROGRIDCABLEONLY10.0 | 109.5 | 6.6 | 10 | 13.1 |
| PROGRIDCABLEONLY12.0 | 131.4 | 7.9 | 12 | 15.8 |
| PROGRIDCABLEONLY14.0 | 153.3 | 9.2 | 14 | 18.4 |
| PROGRIDCABLEONLY16.0 | 175.2 | 10.5 | 16 | 21 |
