ProWarm™ Foiled Faced In Joist/Batten System
Transform your underfloor heating installation with the ProWarm™ Foiled Faced In Joist/Batten System. This all-in-one solution simplifies the process with its user-friendly design, featuring panels measuring 1200mm x 350mm x 50mm. Engineered for quick fitting between existing joists or onto battens, these panels are also versatile enough for installation on concrete subfloors.
The ProWarm™ system is tailored for efficient heat distribution, with pipework installed at 200mm centres to ensure even warmth throughout your space. Best suited for suspended timber subfloors with 400mm joist centres, the system integrates seamlessly with our 16mm Pert-Al-Pert pipework, which clips effortlessly into the grooves of the foiled-faced boards.
Crafted from EPS insulation, the ProWarm™ panels can be enhanced with additional insulation below to further optimise system efficiency. Designed to be laid on top of battens, this system mimics the installation of PIR insulation, making it a practical and cost-effective choice for any underfloor heating project.
Key Features:
- Convenient Panel Design: The panels are specifically designed for easy fitting, providing a hassle-free installation process.
- Optimal Dimensions: With dimensions of 1200mm x 350mm x 50mm, these panels offer a practical size for various joist and batten configurations.
- Versatile Application: Suitable for both existing joists and battens on concrete subfloors, these panels provide flexibility in installation.
- Efficient Insulation Material: Made from EPS (Expanded Polystyrene), these panels deliver effective thermal insulation, enhancing the energy efficiency of your heating system.
- All-in-One Solution: The foiled-faced in joist/batten system panels eliminate the need for separate spreader plates and foil-faced insulation systems, simplifying installation and reducing overall costs.
- Compatible with 15mm and 16mm Pipes: These panels are designed for compatibility with both 15mm and 16mm pipe sizes, ensuring a seamless integration with common underfloor heating systems.
Upgrade your underfloor heating system with the ProWarm™ Foiled Faced In Joist/Batten System. These panels provide a convenient and cost-effective solution, streamlining the installation process while enhancing the performance of your heating system with their efficient insulation properties.
Specifications
Expanded Polystyrene – Grade EPS100 ( BS EN 13163 ).
| Panel Dimensions | 1200mm x 350mm x 50mm |
|---|---|
| Panel Thickness | up to 125mm ( in 1.0mm increments ) |
| Aluminium Foil Thickness | 45 microns |
| Thermal Conductivity | 0.036 W/mK |
| Compressive Strength | 100 kPa @ 10% compression |
| Compressive Strength | 45 kPa @ 1% compression |
| Fire Classification | Euroclass F |
| Suitable Pipe Size | 15mm and 16mm |
Installation

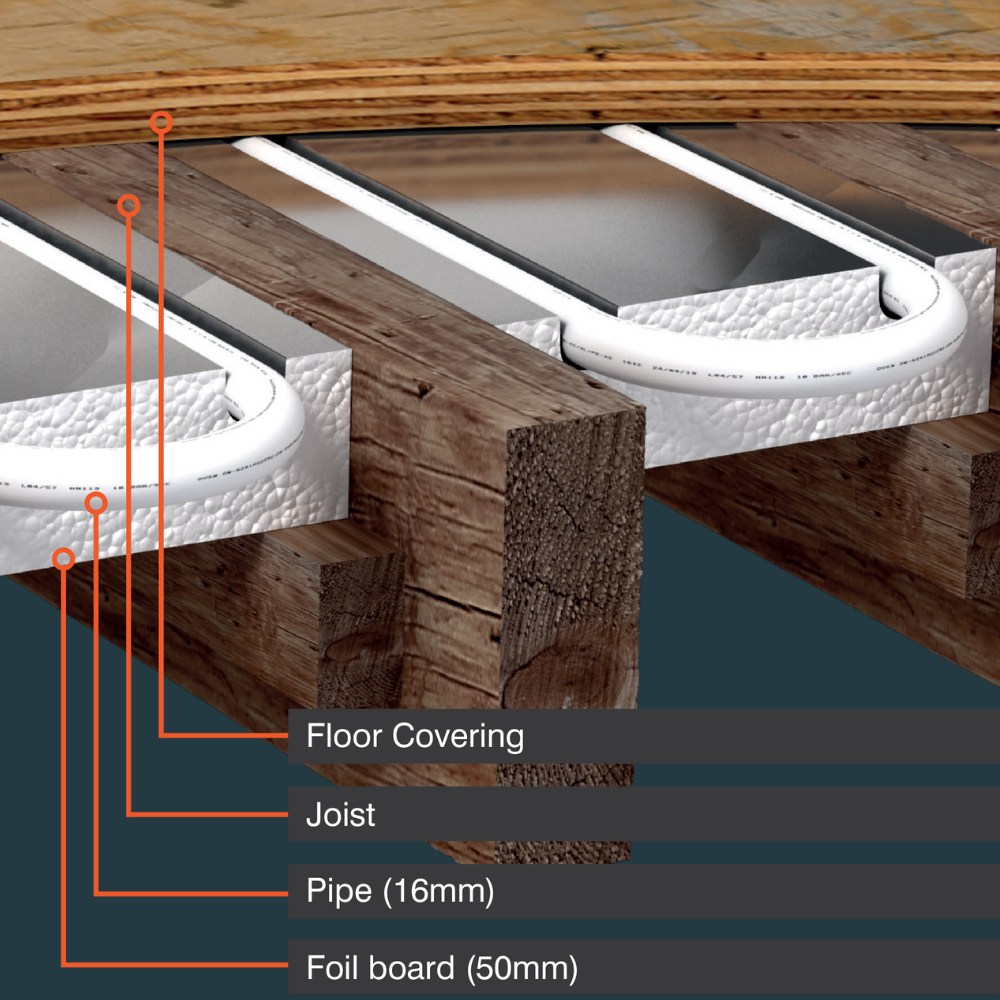

To install the in joist batten system you will begin by securing battens to the sides of the joist with the top of the batten 50mm below the top of the joist. This will allow the insulation to sit flush with the top of the joist.
The pipework can then be placed withing the preformed grooves within the board.
You can finish the installation of this system by installing the finished floor.
