ProWarm™ Electric Underfloor Heating Mat Kit
Introducing the ProWarm™ Electric Underfloor Heating Mat Kit—the ultimate heating solution for your home, now in its latest and most advanced iteration. This remarkable product offers an exceptional combination of efficiency and luxury, transforming every room into a warm, inviting haven. Ideal for installation under tile, stone, ceramic, or similar flooring, it seamlessly integrates into your existing floor design, minimising any disruption to your home.
Whether in your cosy sanctuary or bustling business, the ProWarm™ electric underfloor heating mat delivers unmatched comfort. Imagine stepping onto a warm floor in your bedroom, office, bathroom, or any other space. This is more than just heating; it’s a new level of luxury that elevates your environment into a true sanctuary.

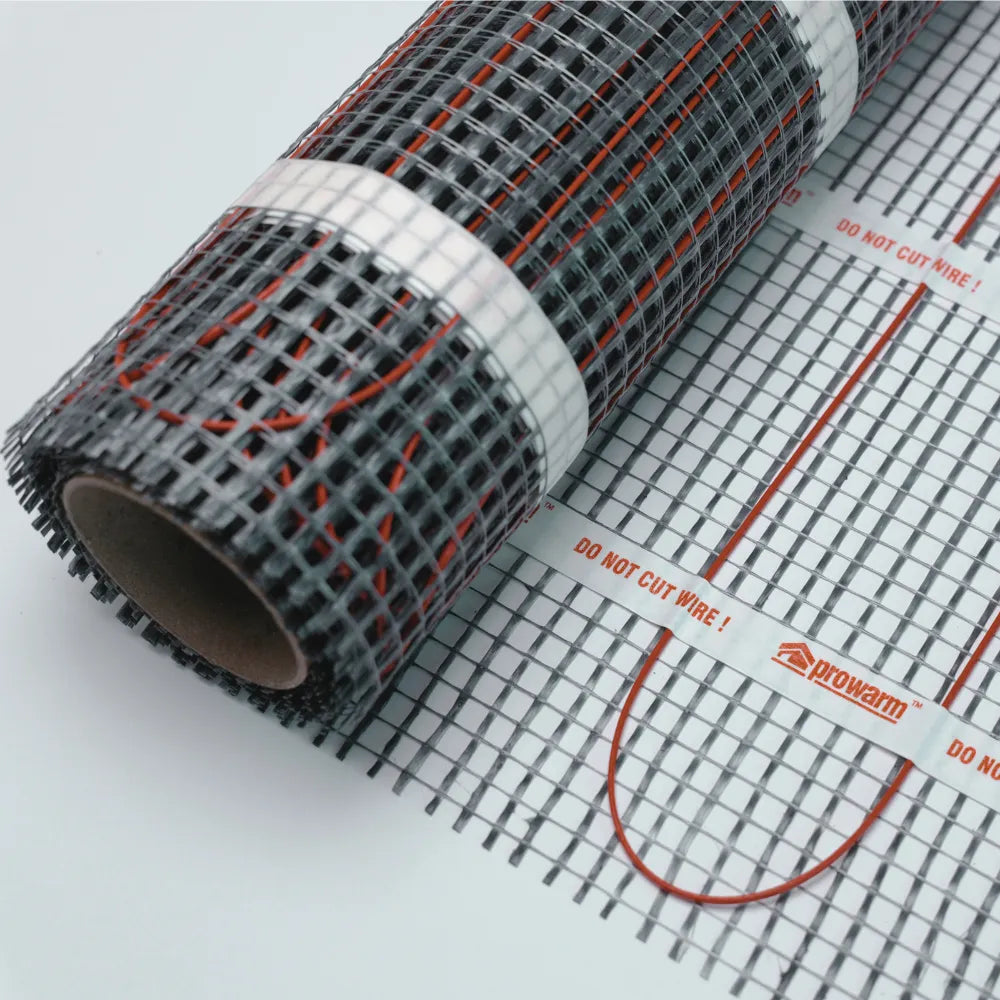

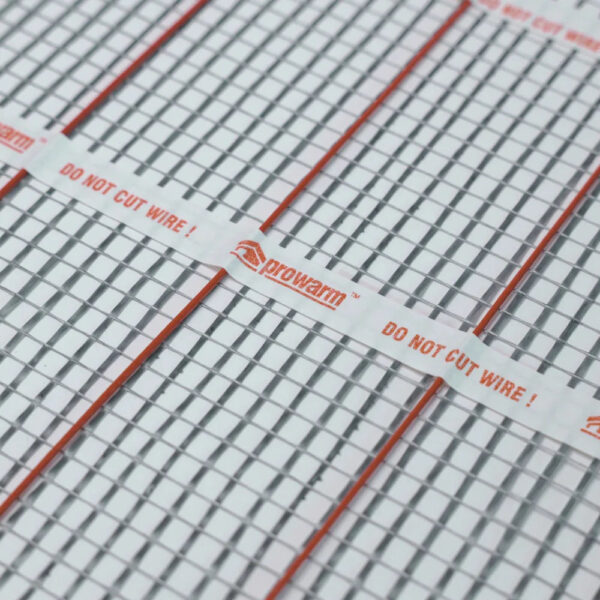

This advanced electric underfloor heating mat is the result of cutting-edge engineering, featuring two key elements: meticulously spaced 2mm heating wire for optimal heat output and a robust sticky glass fibre mesh mat with a super-strong self-adhesive backing, ensuring the fastest and most secure installation for your project.
The ProWarm™ Electric Underfloor Heating Mat Kit is available in three different wattages to suit your heating requirements:
- 100W Electric Underfloor Heating Mat: Best suited as a primary heat source for new builds or a secondary heat source for older properties.
- 150W Electric Underfloor Heating Mat: Our best-selling option, ideal for heating bathrooms, kitchens, and other living areas as the primary heating source, ensuring a wonderfully cosy atmosphere.
- 200W Electric Underfloor Heating Mat: Offers a 25% faster warm-up time, perfect for high heat loss areas in your home. This powerful option guarantees superior heat in bathrooms, kitchens, or living areas, even on the coldest winter nights.
Our commitment to your satisfaction goes beyond just the product. The ProWarm™ Electric Underfloor Heating Mat Kit is designed to include everything you need for installation, all neatly packed in one convenient box with full-colour, user-friendly instructions. This new and improved version ensures a hassle-free installation, allowing you to enjoy the benefits of underfloor heating like never before.

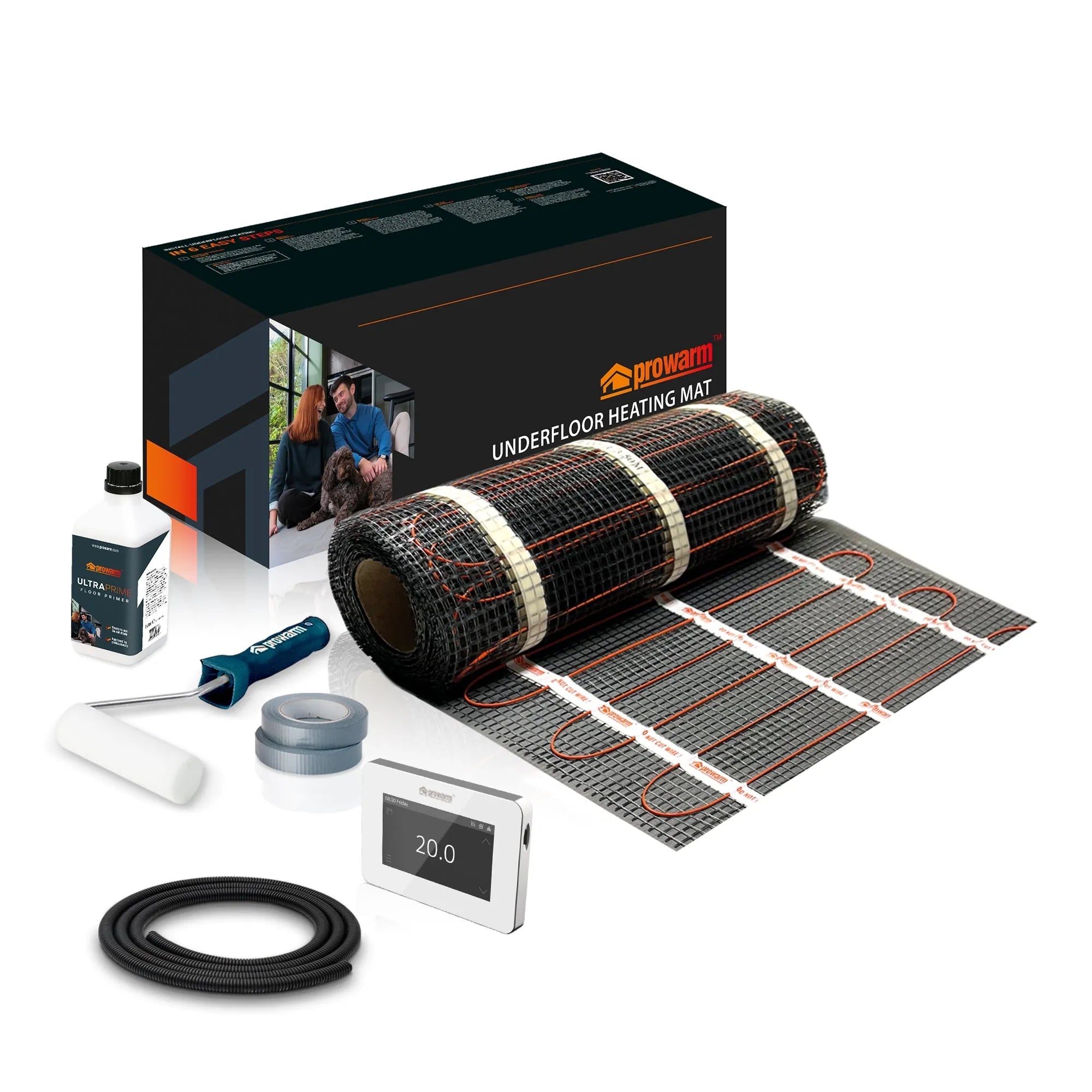

Kit Includes:
- Underfloor Heating Sticky Mat (Two individual mats for sizes over 12m²)
- Floor Primer – a high-performance universal priming/sealing agent suitable for plaster, timber, brick, and block work.
- Roller – a high-quality tool for applying floor primer to the subfloor.
- Adhesive Tape – designed to assist in holding the mat or cable in position during installation.
- 2m Floor Sensor Probe Conduit – provides a protective pathway for the sensor probe, connecting to your thermostat.
- Digital Thermostat (if selected) – easily adjust the heat settings for warm floors at the touch of a button.
Key Details
- ProWarm™ offers high-quality ETFE insulated heating cables made with premium fluoropolymer material, free from PVC.
- The ultra-thin 2mm ProWarm™ cables are the thinnest on the market, allowing you to tile directly over the mat.
- Durable and tough, the ProWarm™ heating systems utilise multi-strand wires.
- Our mats are 500mm wide, making them the perfect size for installation.
Why You Should Choose ProWarm™
- Lifetime Warranty: Enjoy peace of mind with our ProWarm™ electric underfloor heating mats, all backed by a lifetime warranty.
- Expert Technical Support: Benefit from free technical assistance from ProWarm™ underfloor heating experts.
- CableSafe Guarantee: If you accidentally cut your cable during installation, ProWarm™ will replace it at no extra cost.
Specifications
High-Quality Construction
- ProWarm™ Electric Underfloor Heating Sticky Mat: Utilises the same premium cable as the ProWarm™ Loose Cable kit. The mat kit features a sticky fibreglass mesh to ensure optimal heat output by maintaining proper cable spacing. Installation is straightforward—simply roll out the mat to cover the desired heating area.
- Heating Cable: Series-type with twin conductors and a 4m cold lead at one end.
- Cable Composition: The resistance heating wire is encased in a fluoropolymer insulation layer, wrapped in protective metal shielding, and enclosed in a final plastic outer sheath. The twin conductor cable has a final diameter of 2mm.
- Junction Design: Unique design for hot and cold lead junctions ensures foolproof connections.
Standards and Approvals
- Standards: Meets all test requirements of IEC 60335.
- Certifications: CE certified by SGS.
Performance and Benefits
- Cost-Effective: Provides heat precisely where needed, optimising heat utilisation and minimising losses.
- Flexibility: Can be installed in any area or floor layout.
- Comfort: Close and uniform spacing of heating cables, combined with thermostat controls, allows for precise temperature settings, enhancing comfort.
- DIY-Friendly: Designed for easy installation with clear instruction manuals and professional technical support.
- Versatility: Available in various heat loads and sizes to suit different flooring types.
Mat Dimensions
- Width: 0.5m
- Length: Dependent on the selected square meter coverage
- Cable Thickness: 2mm
Installation
Please Note: This is a brief guide. Always refer to the full installation manual for comprehensive instructions.
1. Plan Your Layout:
- Divide the floor into a series of rectangles. Use these measurements to calculate the number and sizes of mats needed, excluding permanent or static fixtures from your calculations.
2. Prepare the Subfloor:
- For screed over concrete floors, lay insulation boards to minimise heat loss and ensure quicker warm-up times.
3. Lay the Heating Mat:
- Start with the first run of the mat. Cut the mat (leaving the cable intact) at the end of each run, turn it 90° or 180°, and continue laying.
- Once the area is covered, adjust the mat so that the loops are evenly spaced.
- Secure the mat to the subfloor using the special tape provided.
4. Electrical Connections:
- Install an RCD fused spur to power the thermostatic controller/programmer and the mat system.
- Lay the temperature probe from the timer-thermostat onto the floor, positioning it equidistant between two cable loops, and secure it to the surface.
- Position the unheated power supply cable from the end of the mat system near the thermostat.
- Make all necessary connections to the power supply. Run the heaters for no more than 10 minutes to ensure they are heating up properly.
5. Finish the Flooring:
- Option 1: Apply a thin, self-levelling screed over the mat and allow it to dry completely before laying tiles.
- Option 2: Directly trowel flexible tile adhesive over the mat and lay the floor tiles.
- After grouting, let the tile adhesive cure fully before switching on the system.
